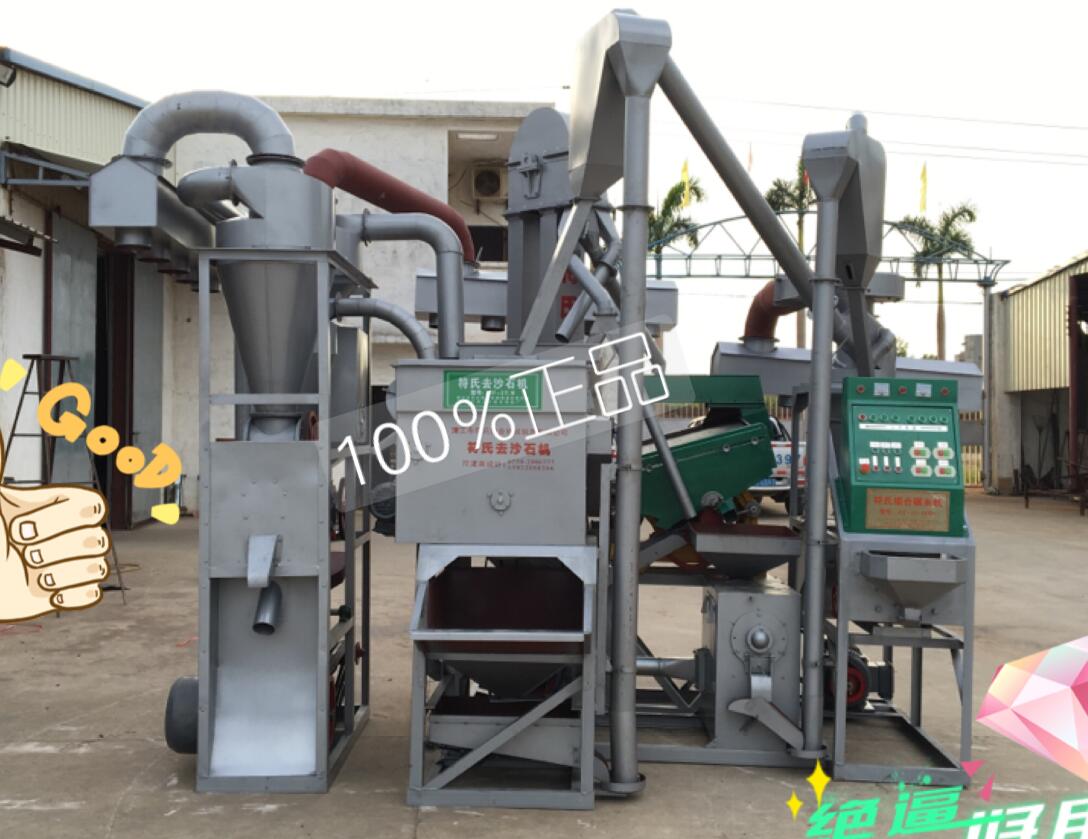

New Style Rice Milling Machine一一￥43800EXW

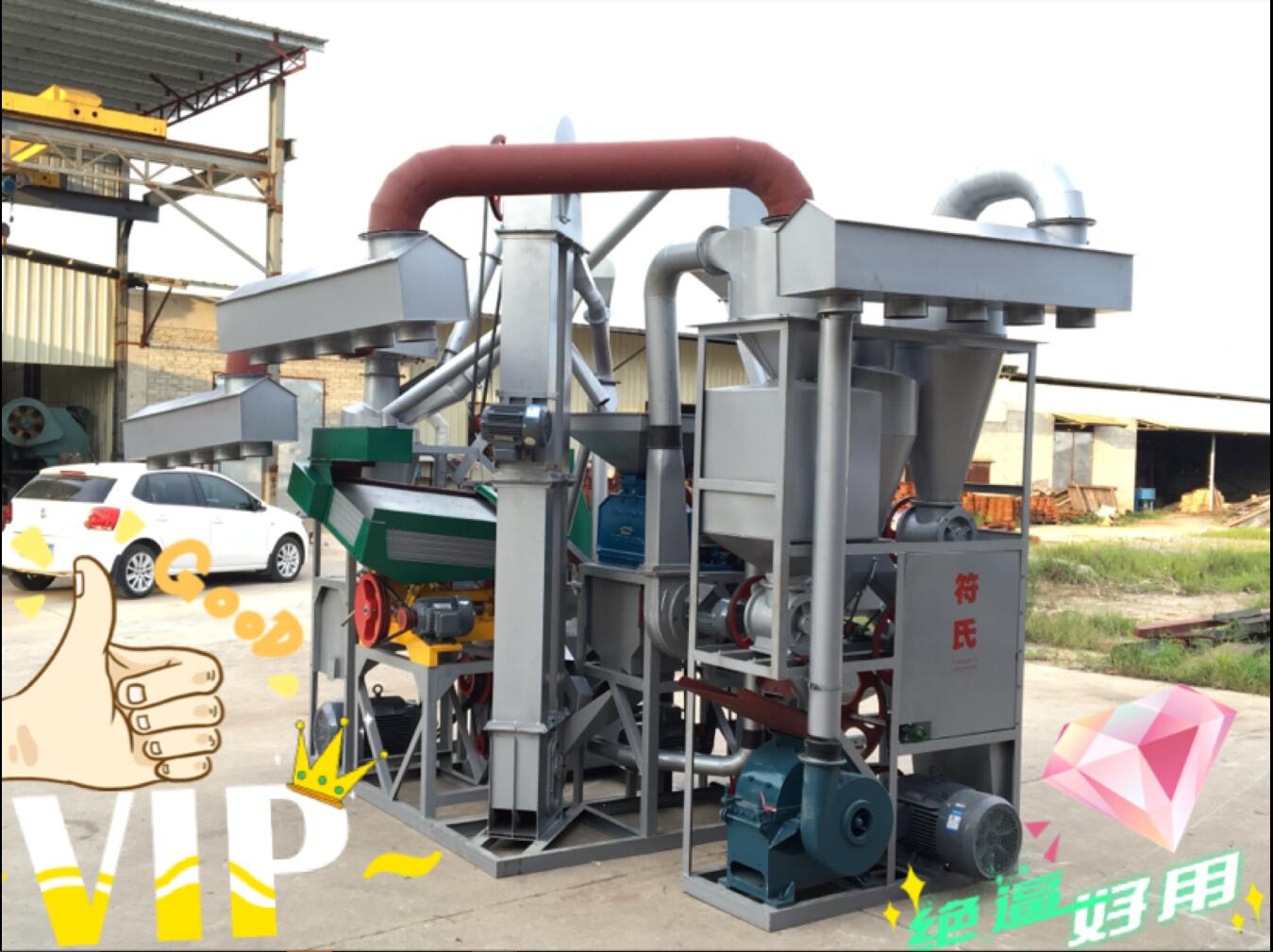

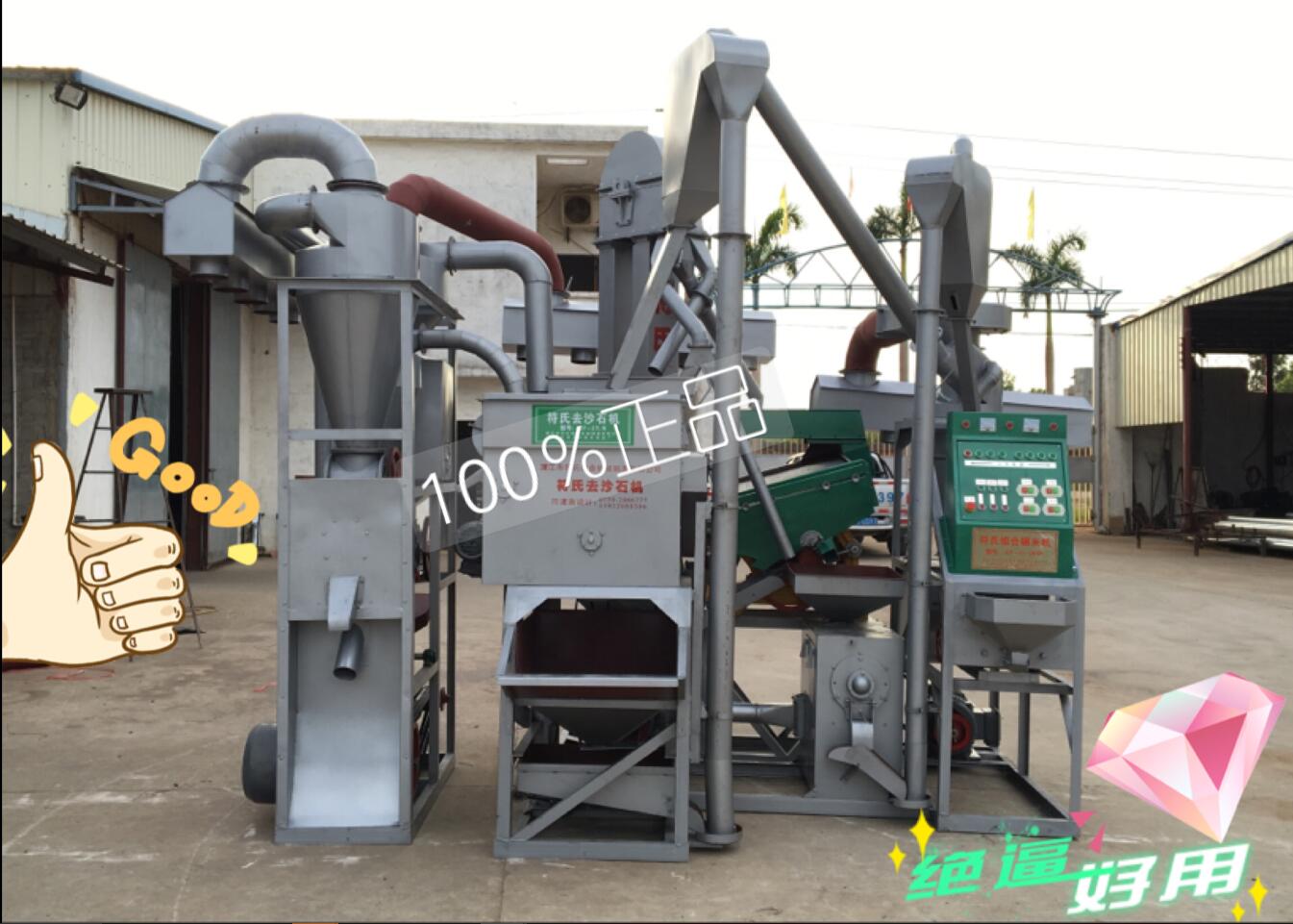

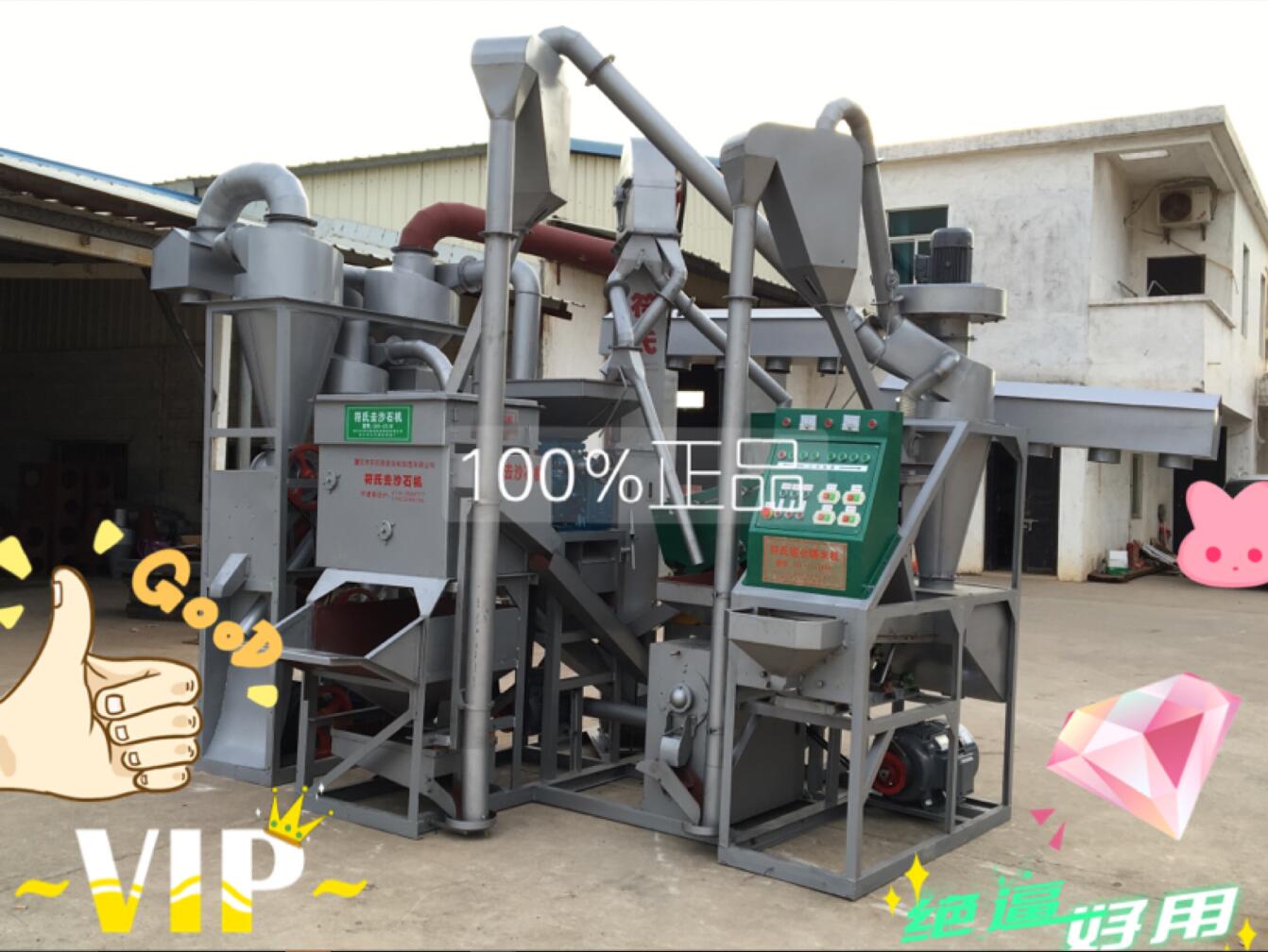

Model ZJF-15-40M&S rice mill is our factory’s new generation product that was researched and develped through many years.
The main functions and advantages are as follows.
（一）Conveyance Parts (hoist with wind power):
To be conveyed using wind power, the unhusked rice and husked rice will not be grinded up, and meanwhile the impurities can be removed.
（二）The Main Function of Impurity-eliminating Sieve:
The impurity-eliminating sieve can be used to remove the impurities from the straw, insect powder, sand, dust,which benefits for wind suction.
（三）The Main Function of Sand-removing Component:
1. Sand-removing component in blowing way can separate the unhusked rice from other stuff （such as sand, stones, mud, iron pieces, nails and so on）through wind blowing and eccentric action，according to the principle of different specific gravity between unhusked rice and other stuff.
2. Adjustment and maintenance.
（四）The Main Function of Hoister:
1. This component is composed of flat belt and “the box with a curved lid”, which hoists and transports the unhusked rice by electric motor.
2. Adjustment and maintenance.
（五）The Main Function of Rice Huller:
1. Rice huller works through simple principium. It is solid, durable, wearable, power-saving, easy to repair, with high shelling rate of 90-98%.
2. Adjustment and maintenance.
（六）The Main Principle and Function of Gravity Paddy Separator:
1. Gravity paddy separator is smooth to operation, easy to adjust, high efficient to produce, effective to separate and quick to back and forth. By the eccentric role of the eccentric shaft and the eccentric wheel and through low-speed working and the regular and uneven granular structure on the flat of sieve plate, gravity paddy separator can make different objects separate(eg. making the unhusked rice and the brown rice separate).
2. Maintenance and disassembly.
（七）The main function and advantages of Rice Polisher:
"1. Rice husker has the role of blowing and suction by wind, which can suck the brown rice bran out and lower the temperature of rice by blowing. The sand roller is able to make the brown rice become the rice by infeed grinding. Rice husker has the high rate of processing rice, the lower rate of broken rice, the bright luster of rice, the easier operation, the lower noise and the less wear and tear during operation.
2. Maintenance and disassembly (Pages 29-30)"
（八）The Operational Principle of Broken Rice Sieve:
1. Broken rice sieve can sieve out the broken rice by vibrating through the role of the eccentric and drafting and rubber ball constantly crashing, so that the rice will be without the broken rice. It is easy to understand and operate.
Note: Choose the best sieve before using our rice mill, according to the different kinds of rice.
2. Maintenance and disassembly.
（九）The Structure and Function of Bran Mixer:
1. Bran mixer is composed of the muller, “Shakelong” and “GFD”, of which structure is close and compact. The main function is to process feed, grind up the paddy bran, discharge the brown rice bran and the rice bran, mixed bran. It is smooth, durable and no pollution.
2. Maintenance and disassembly.

note：we offer OEM.
